Dt-swiss DT Swiss H1700 Spline 30 Boost Disc Rear Wheel

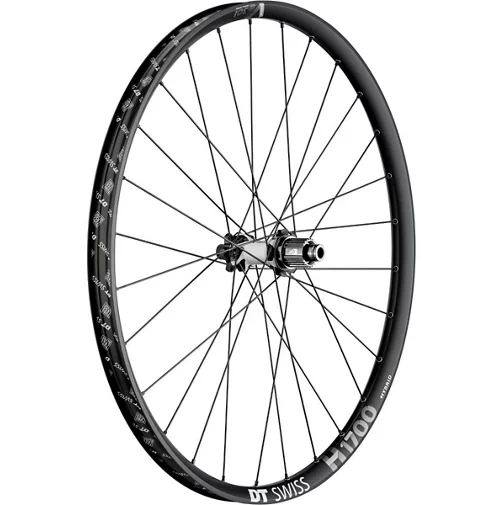

DT Swiss H1700 Spline 30 Boost Disc Rear Wheel

Ready for the extra demands of your toughest E-MTB rides, the tubeless ready DT Swiss H1700 Spline 30 Boost Disc Rear Wheel brings you extra strength and control for attacking the harshest terrains with confidence.

An electric mountain bike (E-MTB) is designed to quickly ride up and down mountains and to provide fun. The H 1700 model is a high-end aluminium wheel that does precisely that. With several years of expertise in hybrid bicycle components and specific, demanding testing procedures, DT Swiss has redesigned this wheel to suit the extended use of e-mountain biking.

The redesigned 350 hub features a bigger hub body, enabling better brake and drive torque resistance, resulting in better durability. The hub is now combined with a high-end welded aluminium rim and reinforced hybrid spokes. This mountain bike wheel is ready for anyone who wants to extend their eMTB adventure.

Features:

• Rim Type: Clincher
• Rim Material: Aluminium
• Rim Width: Inner: 30mm; Outer: 35mm
• Brake Type: Disc brake (6-Bolt)
• Tubeless Compatible: Yes
• Hub Width: 12x148mm (Boost)
• Rim:
• Wheel size: 27.5″
• Rim depth: 20mm
• ETRTO: 30 – 622
• For Presta valve (6.5mm diameter)
• Tubeless ready
• Suitable for tyre widths: 1.5″ – 3.0″
• Spokes and nipples:
• Spoke type: DT Swiss hybrid 1 straightpull
• Number of spokes: 28 pcs each
• Lacing: 3-cross
• Nipples: DT Swiss ProLock® Squorx ProHead aluminium
• Hub:
• 350, Spline®, hybrid, 4 sealed cartridge bearings
• Steel freehub and aluminium body
• IS 6-bolt brake rotor mount
• Ratchet freewheel system, 24T (15° degree engagement)
• Axle:
• 12x148mm (BOOST thru axle)
• Cassette compatibility:
• SHIMANO 12-speed MICRO SPLINE MTB cassettes (& SHIMANO 11-speed WIDE FLANGE MICRO SPLINE MTB cassettes)
• Total Wheel Weight: Approx. 1177g
• ASTM classification: 4 (for extremely rough, blocked terrain with jumps/drops of up to 121cm)
• Max. system weight: 150kg (cyclist, bike, gear and luggage)
• In the box:
• 1x DT Swiss H 1700 Spline® 30 Hybrid BOOST rear wheel SHIMANO MICRO SPLINE
• 1x DT Swiss tubeless-ready rim tape (pre-mounted)
• 1x DT Swiss tubeless valve
